Product Summary

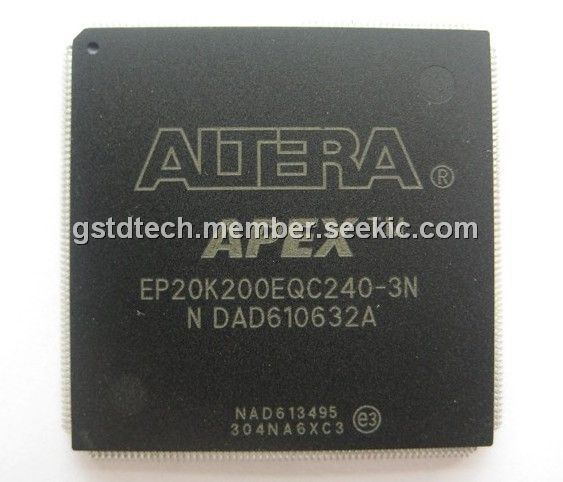

The EP20K200EQC240-3N is a programmable logic device (PLD).

Parametrics

EP20K200EQC240-3N absolute maximum ratings: (1)VCCUBR, supply voltage: -0.5 to 3.6V; (2)VCCIO, supply: -0.5 to 4.6V; (3)VI, DC input voltage: -2.0 to 5.75V; (4)IOUT, DC output current, per pin: -25 to 25mA; (5)TSTG, storage temperature: -65 to 150℃ when no bias; (6)TAMB, ambient temperature: -65 to 135℃ when under bias.

Features

EP20K200EQC240-3N features: (1)LUT logic used for register-intensive functions; (2)Embedded system block (ESB) used to implement memory functions, including first-in first-out (FIFO) buffers, dual-port RAM, and content-addressable memory (CAM); (3)ESB implementation of product-term logic used for combinatorial-intensive functions; (4)High density; (5)30,000 to 1.5 million typical gates; (6)Up to 51,840 logic elements (LEs); (7)Up to 442,368 RAM bits that can be used without reducing available logic; (8)Up to 3,456 product-term-based macrocells.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
EP20K200EQC240-3N
EP20K200EQC240-3N

IC APEX 20KE FPGA 200K 240-PQFP
Data Sheet
0-24: $129.60
