Product Summary
The NHPXA270C5 is an integrated system-on-a-chip microprocessor for high performance, dynamic, low-power portable handheld and hand-set devices as well as embedded platforms.
Parametrics
NHPXA270C5 absolute maximum ratings: (1)TS, Storage temperature: -40 to 125℃; (2)VCC_OL1, Offset voltage between any of the following pins: VCC_CORE: -0.3 to 0.3 V; (3)VCC_OL2, Offset voltage between any of the following pins: VCC_SRAM: -0.3 to 0.3 V; (4)VCC_OH1, Offset voltage between any of the following pins:; (5)VCC_MEM: -0.3 to 0.3 V; (6)VCC_OH2, Offset voltage between any of the following pins:; (7)VCC_IO: -0.3 to 0.3 V.
Features
NHPXA270C5 features: (1)High-performance processor; (2)256 Kbytes of internal SRAM for high speed code or data storage preserved during low-power states; (3)High-speed baseband processor interface (Mobile Scalable Link); (4)Rich serial peripheral set; (5)Hardware debug features — IEEE JTAG interface with boundary scan; (6)Hardware performance-monitoring features with on-chip trace buffer; (7)Real-time clock; (8)Operating-system timers; (9)LCD Controller; (10)Universal Subscriber Identity Module interface.

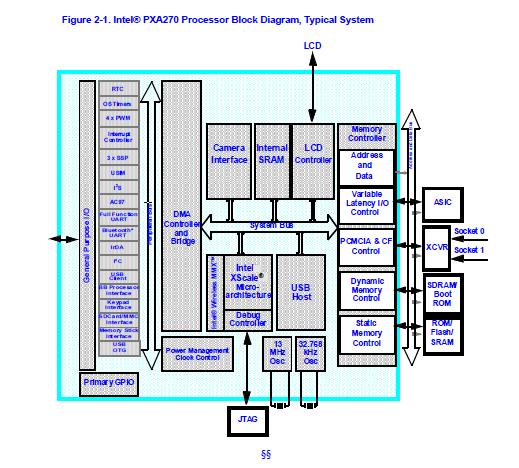

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 NHPXA270C5C312 |
|
IC MPU 32BIT 312MHZ 356-PBGA |
Data Sheet |
Negotiable |
|
||||
|
NHPXA270C5C416 |
|
IC MPU 32BIT 416MHZ 356-PBGA |
Data Sheet |
Negotiable |
|
||||
|
NHPXA270C5C520 |
|
IC MPU 32BIT 520MHZ 356-PBGA |
Data Sheet |
Negotiable |
|
||||
