Product Summary
The UC3843BD1R2G is a high performance fixed frequency current mode controller. It is specifically designed for Off-Line and DC-DC converter applications offering the designer a cost-effective solution with minimal external components. The UC3843BD1R2G integrated circuits feature a trimmed oscillator for precise duty cycle control, a temperature compensated reference, high gain error amplifier, current sensing comparator, and a high current totem pole output ideally suited for driving a power MOSFET.
Parametrics
UC3843BD1R2G absolute maximum ratings: (1)Bias and Driver Voltages (Zero Series Impedance, see also Total Device spec), VCC, VC: 30 V; (2)Total Power Supply and Zener Current, (ICC + IZ): 30 mA; (3)Output Current, Source or Sink, IO: 1.0 A; (4)Output Energy (Capacitive Load per Cycle), W: 5.0μJ; (5)Current Sense and Voltage Feedback Inputs ,Vin: -0.3 to + 5.5 V; (6)Error Amp Output Sink Current, IO: 10 mA; (7)Operating Junction Temperature, TJ: +150℃; (8)Storage Temperature Range, Tstg: -65 to +150℃.
Features
UC3843BD1R2G features: (1)Trimmed Oscillator for Precise Frequency Control; (2)Oscillator Frequency Guaranteed at 250 kHz; (3)Current Mode Operation to 500 kHz; (4)Automatic Feed Forward Compensation; (5)Latching PWM for Cycle-By-Cycle Current Limiting; (6)Internally Trimmed Reference with Undervoltage Lockout; (7)High Current Totem Pole Output; (8)Undervoltage Lockout with Hysteresis; (9)Low Startup and Operating Current; (10)Pb-Free Packages are Available.

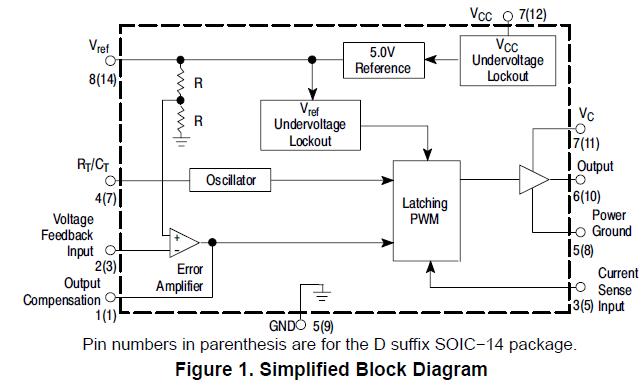

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 UC3843BD1R2G |
ON Semiconductor |
Current Mode PWM Controllers 52kHz 1A Current PWM w/96% Duty Cycle Max |
Data Sheet |
|
|
||||||||||||
