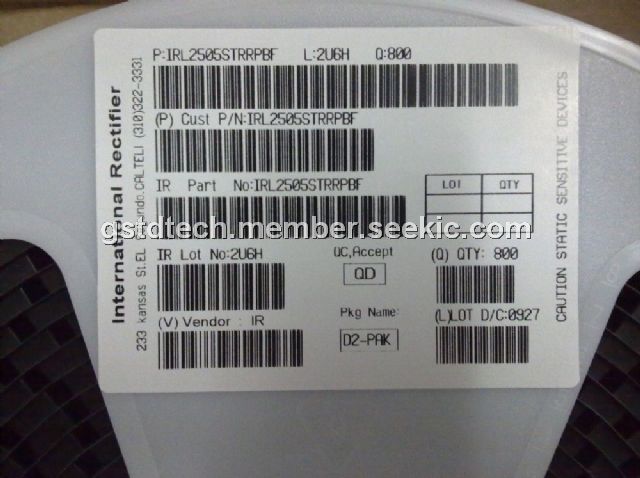

IRL2505STRRPBF

HEXFET, 104A, 200W

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~1.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~1.50

PartNumber:: IRL2505STRRPBF

Brand:: International Rectifier - IR | Pack: DIP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Isha's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-06-03

From Other Seller

Part Number:IRL2505STRRPBF
US $1.00 - 1.50
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The IRL2505STRRPBF is a Fifth Generation HEXFET from International Rectifier utilize advanced processing techniques to achieve extremely low on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that HEXFET Power MOSFETs are well known for, provides the designer with an extremely efficient and reliable device for use in a wide variety of applications.

Parametrics

IRL2505STRRPBF absolute maximum ratings: (1)ID @ TC = 25℃, Continuous Drain Current, VGS @ 10V: 104A; (2)ID @ TC = 100℃, Continuous Drain Current, VGS @ 10V: 74 A; (3)IDM, Pulsed Drain Current: 360A; (4)PD @TA = 25℃, Power Dissipation: 3.8 W; (5)PD @TC = 25℃, Power Dissipation: 200 W; (6)Linear Derating Factor: 1.3 W/℃; (7)VGS, Gate-to-Source Voltage: ±16 V; (8)EAS, Single Pulse Avalanche Energy: 500 mJ; (9)IAR, Avalanche Current: 54 A; (10)EAR, Repetitive Avalanche Energy: 20 mJ; (11)dv/dt, Peak Diode Recovery dv/dt: 5.0 V/ns; (12)TJ, TSTG, Operating Junction and sstorage temperature range: -55 to + 175℃; (13)soldering temperature, for 10seconds: 300℃.

Features

IRL2505STRRPBF features: (1)Logic-Level Gate Drive; (2)Advanced Process Technology; (3)Surface Mount; (4)Low-profile through-hole; (5)175℃ Operating Temperature; (6)Fast Switching; (7)Fully Avalanche Rated.
