Product Summary
The STV9306B is a vertical deflection IC. It is designed for use in 110°, 4:3 or 16:9 CRT applications. It integrates both the vertical deflection and E/W correction circuits required for 110° chassis.
Parametrics
STV9306B absolute maximum ratings: (1)VS, Supply Voltage: 35 V; (2)VFLYBACK, Flyback Peak Voltage: 60 V; (3)VI, Input Voltage at Pins 1-3-5-12-13-14-15: -0.3, VS V; (4)VIS, Input Voltage at Pins 2-4: 10 V; (5)E/W, OUT East/West Output: 60 V; (6)TOPER, Operating Temperature: -10, +70℃; (7)TSTG, Storage Temperature: -55, +150℃; (8)TJ, Junction Temperature: +150℃.
Features
STV9306B features: (1)Fully I2C controlled; (2)DMOS Power Half-bridge Amplifier; (3)DC Coupled Operation; (4)Internal Flyback Generator (Up to 60 V); (5)Self Adapted Sawtooth (50/60 Hz); (6)100 Hz Operation; (7)Vertical Linearity, Amplitude and Centering Adjustments; (8)Horizontal Width, Pincushion, Trapezoid and Corner Adjustments; (9)4:3 and 16:9 CRT Applications; (10)Thermal Protection; (11)Linear Vertical Zoom Function; (12)E/W Class A Output; (13)Positive/Negative East/West Corner Correction; (14)Few External Components.

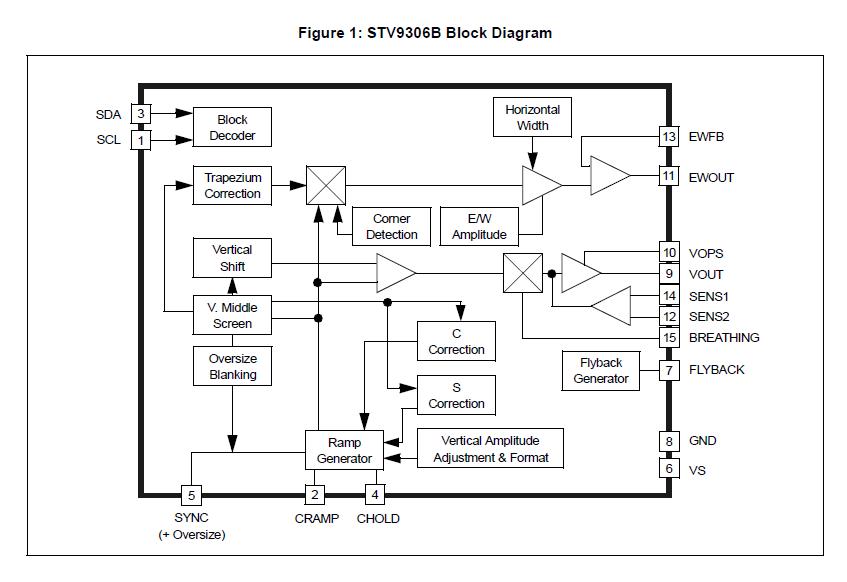

Diagrams
 |
