Product Summary
The ADG728BRUZ-REEL is a CMOS analog matrix switches with a serially controlled 2-wire interface. The device is an 8-channel matrix switch. It utilizes a 2-wire serial interface that is compatible with the I2C interface standard.
Parametrics
ADG728BRUZ-REEL absolute maximum ratings: (1)VDD to GND:–0.3 V to +7 V; (2)Analog, Digital Inputs:–0.3 V to VDD + 0.3 V or 30 mA, Whichever Occurs First; (3)Peak Current, S or D:100 mA(Pulsed at 1 ms, 10% Duty Cycle max); (4)Continuous Current, Each S:30 mA; (5)Continuous Current D:120 mA; (6)Operating Temperature Range Industrial (B Version):–40℃ to +85℃; (7)Storage Temperature Range:–65℃ to +150℃; (8)Junction Temperature:150℃.
Features
ADG728BRUZ-REEL features: (1)2-Wire Serial Interface; (2)2.7 V to 5.5 V Single Supply; (3)2.5Ω On Resistance; (4)0.75Ω On-Resistance Flatness; (5)100 pA Leakage Currents; (6)Dual 4-to-1 Matrix Switch ADG729; (7)Power-On Reset; (8)Small 16-Lead TSSOP Package.

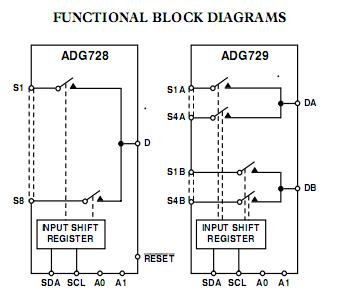

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ADG728BRUZ-REEL |
|
IC MUX/DEMUX 8X1 16TSSOP |
Data Sheet |
Negotiable |
|
||||||
|
ADG728BRUZ-REEL7 |
|
IC MUX/DEMUX 8X1 16TSSOP |
Data Sheet |
|
|
||||||
