Product Summary
The SSM2167-1RMZ is a low voltage microphone preamplifier with variable compression and noise gating. It is a complete and flexible solution for conditioning microphone inputs in personal electronics and computer audio systems. The SSM2167-1RMZ is also excellent for improving vocal clarity in com-munications and public address systems. A low noise voltage controlled amplifier (VCA) provides a gain that is dynamically adjusted by a control loop to maintain a set compression characteristic.
Parametrics
SSM2167-1RMZ absolute maximum ratings: (1)Supply Voltage: 6 V; (2)Input Voltage: 6 V; (3)Operating Temperature Range: -40 to +85℃; (4)Junction Temperature: 150℃; (5)Lead Temperature (Soldering, 10 sec): 300℃; (6)883 (Human Body) Model: 500 V.
Features
SSM2167-1RMZ features: (1)Complete microphone conditioner in a 10-lead package Single 3 V operation; (2)Low shutdown current < 2 μA; (3)Adjustable noise gate threshold; (4)Adjustable compression ratio; (5)Automatic limiting feature prevents ADC overload; (6)Low noise and distortion: 0.2% THD + N; (7)20 kHz bandwidth.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SSM2167-1RMZ |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||||||||
 |

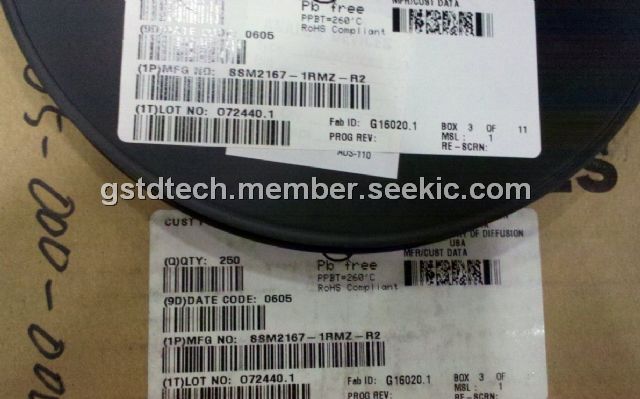

SSM2167-1RMZ-R2 |
Analog Devices Inc |
IC PREAMP AUDIO MONO AB 10MSOP |
Data Sheet |
Negotiable |
|
||||||||||||||||||
 |
SSM2167-1RMZ-R7 |
|
IC PREAMP AUDIO MONO AB 10MSOP |
Data Sheet |
|
|
||||||||||||||||||
|
SSM2167-1RMZ-REEL |
|
IC PREAMP AUDIO MONO AB 10MSOP |
Data Sheet |
|
|
||||||||||||||||||
